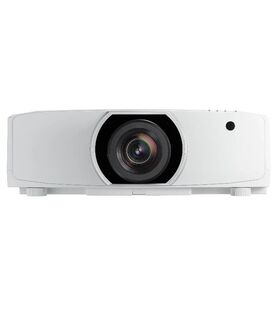

NEC PA803u WUXGA Professional Installation Projector

Write a review
Click below on "Inquiry" button for discount prices.
EP000013
Send us inquiry

Highlights of NEC PA803u WUXGA Professional Installation Projector


  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • 10,000 hour Filter Life
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense


Product description for NEC PA803u WUXGA Professional Installation Projector

NEC’s PA803U is a 8000-lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.


Product specifications for NEC PA803u WUXGA Professional Installation Projector

Display

Native ResolutionWUXGA 1920 x 1200
Contrast Ratio (typical)10,000:1 with auto iris
Maximum Resolution4K 4096 x 2160

Synchronization Range

Horizontal (Analog/Digital)Analog: 15-100kHz, Digital: 15-153kHz
VerticalAnalog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Supported Video StandardsNTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
PC Signal CompatibilityVGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Sync CompatibilitySeparate Sync / Composite Sync / Sync on G
SD/HD Video Signal Compatibility480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
Macintosh Signal CompatibilityYes
External ControlRS-232, IR, DDC/CI, USB
Input TerminalsRGB1(analog): VGA 15-pin D-sub
RGB2(digital): HDMI w/HDCP (V2.2)
RGB3(digital): HDMI w/HDCP (V2.2)
RGB4(digital): DisplayPort w/HDCP (V1.4)
RGB5(digital): HDBaseT w/HDCP (V2.2)
Audio 1: Stereo Mini Jack
Output TerminalsAudioout: Stereo Mini Jack
Monitor Out: HDBaseT

Power Consumption (typical)

On 566W / 390W / 0.7W / 0.3W
Power Requirements 100-240V AC, 50/60 Hz
Input Current 6.2-3.1A

Physical Specifications

Dimensions (WxHxD)Product:
19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm
WeightNet Weight:

 22.5 lbs. / 10.2 kg

Environmental Conditions

Operating Temperature41-104°F / 5-40°C
Storage-14-122°F / -10-50°C

Additional Features

  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • 10,000 hour Filter Life
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense

Optical

Display Technology 0.76″ LCD w/ MLA
Lamp Type 420W AC
Screen Size (diagonal) 40 to 500 in. / 1.02 to 12.7m
Light Output(Lumens) 8000normal
Lamp Life (up to) 3000 hours normal / 5000 hours eco
Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide
LensZoom: Variable Focus: Power F number, fnumber: Variable

Mechanical

Installation OrientationFloor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
RegulationsUSA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)
Fan Noise39 dB normal / 33 dB eco
Optional LensesNP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL
