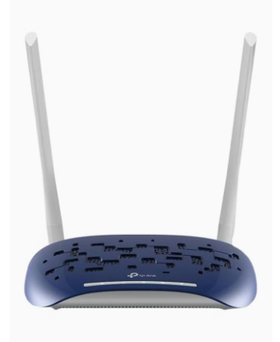

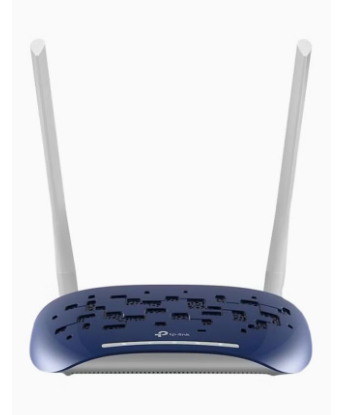

TP-Link- N ADSL2 Wireless Router Blue/White

Product description for TP-Link- N ADSL2 Wireless Router Blue/White

• Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi
• Powerful external antennas provide far-reaching wireless coverage in every direction
• Set up in minutes with the powerful Tether app or intuitive web interface and manage network
• Provides speed enabled modem to enjoy an uninterrupted connection
• Lightweight design allows quick installation

Speed: 300Mbps Interface 3 10/100Mbps RJ45 LAN Ports 1 10/100Mbps RJ45 LAN/WAN Port 1 RJ11 Port Button WPS Button RESET Button Power ON/OFF Button External Power Supply 9VDC/0.6A IEEE Standards IEEE 802.3, 802.3u VDSL2 Standards ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)Antenna Type Omni directional, Fixed Antenna Gain 2 x 5dBi WIRELESS FEATURES Wireless Standards IEEE 802.11b, 802.11g, 802.11n Frequency 2.400-2.4835GHz Transmit Power <20dBm(EIRP) Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering SOFTWARE FEATURES Quality of Service WMM, Bandwidth Control (IP QoS) Security NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls Operating Modes VDSL/ADSL Modem Router, Wireless Router, Management Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools VPN Pass-Through IPSec VPN Protocols Supports IPv4 and IPv6 ATM/PPP Protocols PPPoE (RFC2516) PPPoA (RFC 2364) MERIPoE (RFC 1483 Routed) IPoA (RFC1577/2225) Bridge (RFC1483 Bridge) Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 APP Tether App NAT Virtual Server, Port Triggering, DMZ, ALG, UPnP OTHERS Certification CE, RoHS Package Contents TD-W9960 External DSL Splitter RJ-11 DSL Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) Environment Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Specifications
